Eurotherm EPC3004 / EPC3008 Programmable Controllers

EPC3000 Series

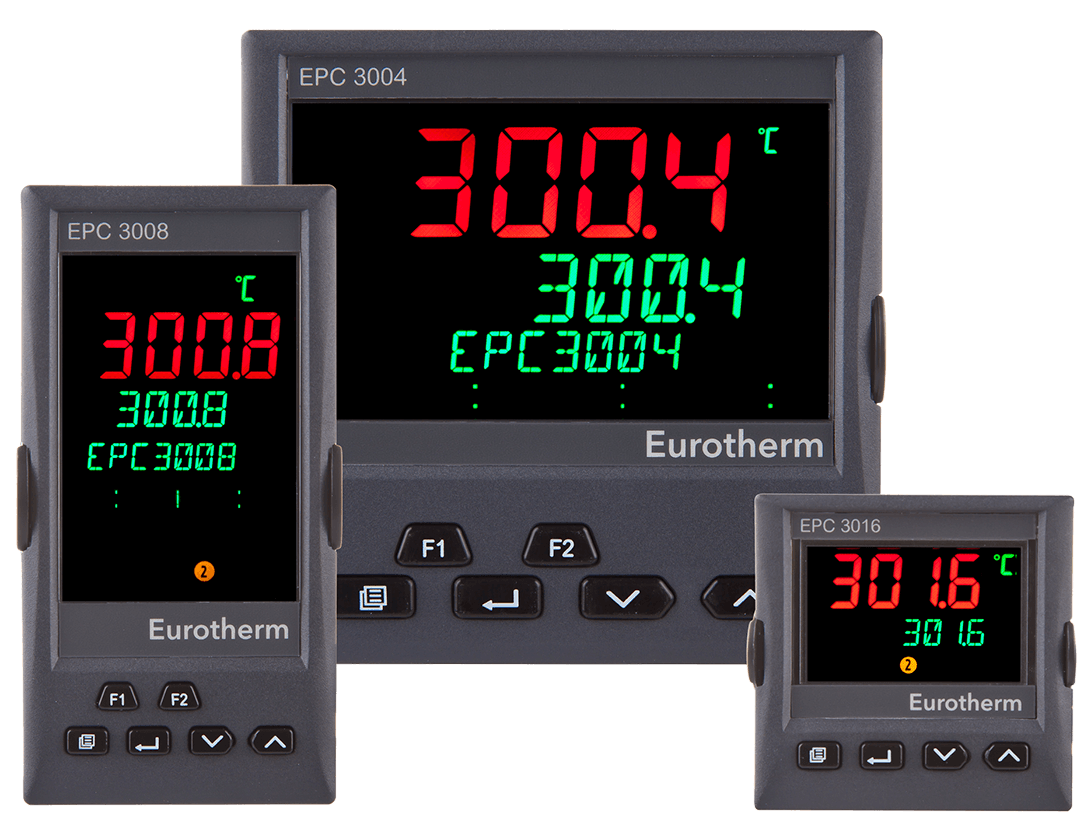

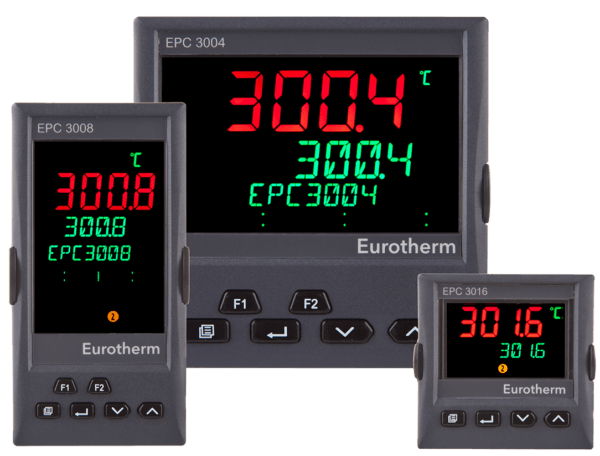

The EPC3016, EPC3008 and EPC3004 are the latest in high performance temperature / process controllers, with a new, enhanced self-tuning algorithm and advanced cyber security standards.

The controllers combine industry leading control and measurement performance with simplicity of use while remaining highly flexible.

A simple “Quick Start” configuration code, enables fast commissioning “Out of the Box” using just the instrument HMI. For applications requiring additional processing, user function block wiring provides a full range of math, logic, totalizer and specialized functions.

Accuracy and repeatability

Process inputs are fast and accurate, with exceptional thermal stability, aiding precise and consistent control over long periods without calibration drift. Recalibration and user calibration correction functions are available to further improve accuracy.

The industry leading Eurotherm PID algorithm delivers fast reacting and repeatable control and has been enhanced for EPC3000 to further reduce overshoot. Rapid rise to operating temperature and low oscillation aids high process throughput at low scrap rates. Different PID settings may be applied in different process operating regions for optimum performance.

Connectivity and cybersecurity

The EPC3000 Ethernet enabled controller range is Eurotherm’s first to be designed and certified to meet the stringent cybersecurity requirements of Achilles® Communications Robustness Testing Level 1. Ethernet communications are supported via a standard RJ45 connector, providing fast access to process and diagnostic information as well as connectivity to external PLC or plant SCADA.

*A PC based backup and configuration tool (the iTools Configuration Clip) uses a USB connection, powering the instrument from the USB interface for convenient desktop configuration.
